PCECG-500 Pocket ECG

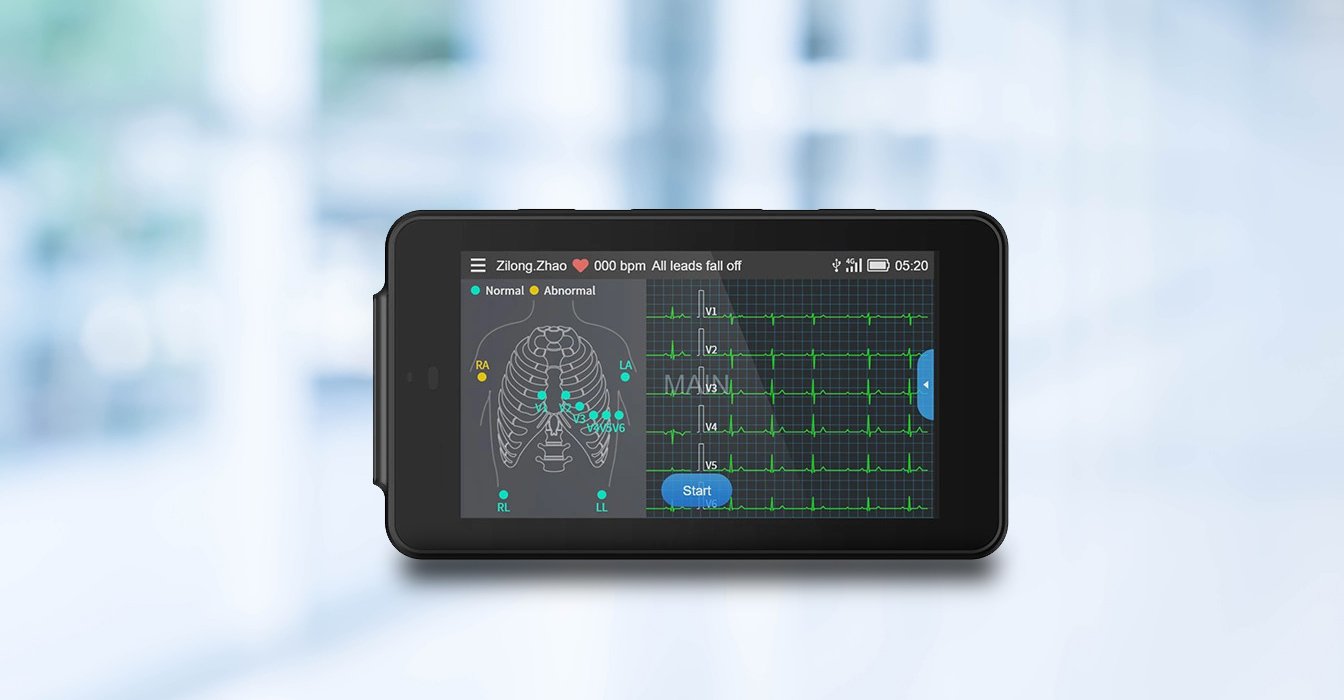

LEPU PCECG-500 Pocket ECG Machine is portable, lightweight and easy to use. It provides the acquisition, analysis, storage and transmission of 12-lead ECG information. Compared to traditional heavy ECG machines, our small PCECG-500 is a great choice for clinics, family doctors and emergency care.

Pocket ECG Details

Product Features:

4.46-inch LCD color touch screen, portable design, small size and lightweight, easy to carry.
Supports simultaneous acquisition and display of 6 and 12 lead waveforms and heart rate detection.
Supports data transfer via email.
Provides 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and triggered sampling.
Provides Glasgow conventional analysis algorithm to automatically analyze the acquired ECG waveforms and output measurement values and diagnostic results.
Supports automatic mode and R-R mode, supports automatic pacing detection and marking.
Supports ADS (Anti-Drift System) and EMG (Electromyography) interference.
Powered by external DC power or built-in rechargeable lithium battery which supports continuous working time >24 hours.

Physical and Hardware Specifications

ECG Specifications

Physical and Hardware Specifications:
Main Unit
Dimensions	134mm × 74mm × 17mm (5.28" × 2.91" × 0.67") (Width × Depth × Height)
Weight	About 250g, including the main unit and battery
Display	4.46 inches, color LCD touchscreen Resolution: 480 × 854 pixels
Power Supply
Built-in rechargeable lithium-ion battery	Rated voltage: 3.8V
	Rated capacity: 6000mAh
	Run time: When using only the internal battery, under normal conditions, when the battery is fully charged, the device can continuously acquire and send ECG data for more than 24 hours.
	Charge time: Charge the battery for at least 8 hours before using it for the first time. For a depleted battery with the device power off: ≤ 8h to 90% capacity ≤ 10h to 100% capacity

ECG Specifications:
Heart Rate Measurement
Method	Peak-peak detection
Measurement range	30bpm-300bpm
Measurement range	±1bpm
Main Unit
Leads	6/12-lead synchronous acquisition and analysis
A/D conversion	24 bits
Sampling rate	2000 samples/sec
Skew between channels	No skew
Amplitude quantisation	0.95 μV/LSB
Common mode rejection ratio (CMRR)	≥100dB (AC filter on)
Time constant	≥3.2s
Frequency response	0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz
Sensitivity	2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV Accuracy: ±5%
Filter	AC filter: 50Hz, 60Hz, Off
	EMG filter: 25Hz, 35Hz, 45Hz, Off
	ADS filter: 0.05Hz, 0.32Hz, 0.67Hz
	Lowpass filter: 75Hz, 100Hz,150Hz, Off
Speed	5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s Accuracy: ±3%
Input impedance	≥50MΩ (10Hz)
Calibration voltage	1mV±5%
Depolarization voltage	±500mV
Noise	≤30μVp-p
Pacing pulse display	Pacing pulse with amplitude of 2mV~250mV, duration of 0.1ms~2.0ms, rise time of less than 100µs, and frequency of 100/min can be displayed on the ECG recording.
ECG input signal range	≤±5mVp-p
Minimum detectable signal	20μVp-p
Analysis Algorithm	Glasgow Resting ECG Analysis Program (12-lead) CWECG-SLA ECG analysis program (6-lead)
